NEXON Submersible Pump Set with 200W Solar Panel
Availability: In stock
Delivery in: 2-4 work days
- SKU: SOL04
NEXON Submersible Pump Set with 200W Solar Panel
The NEXON submersible pump can operate independently of the power grid. This device uses solar energy to function anywhere it is needed. Depending on solar insulation and model, the pump's flow rate can reach 1500 L/h.
Ensures autonomous operation during the grazing season, from April to October.

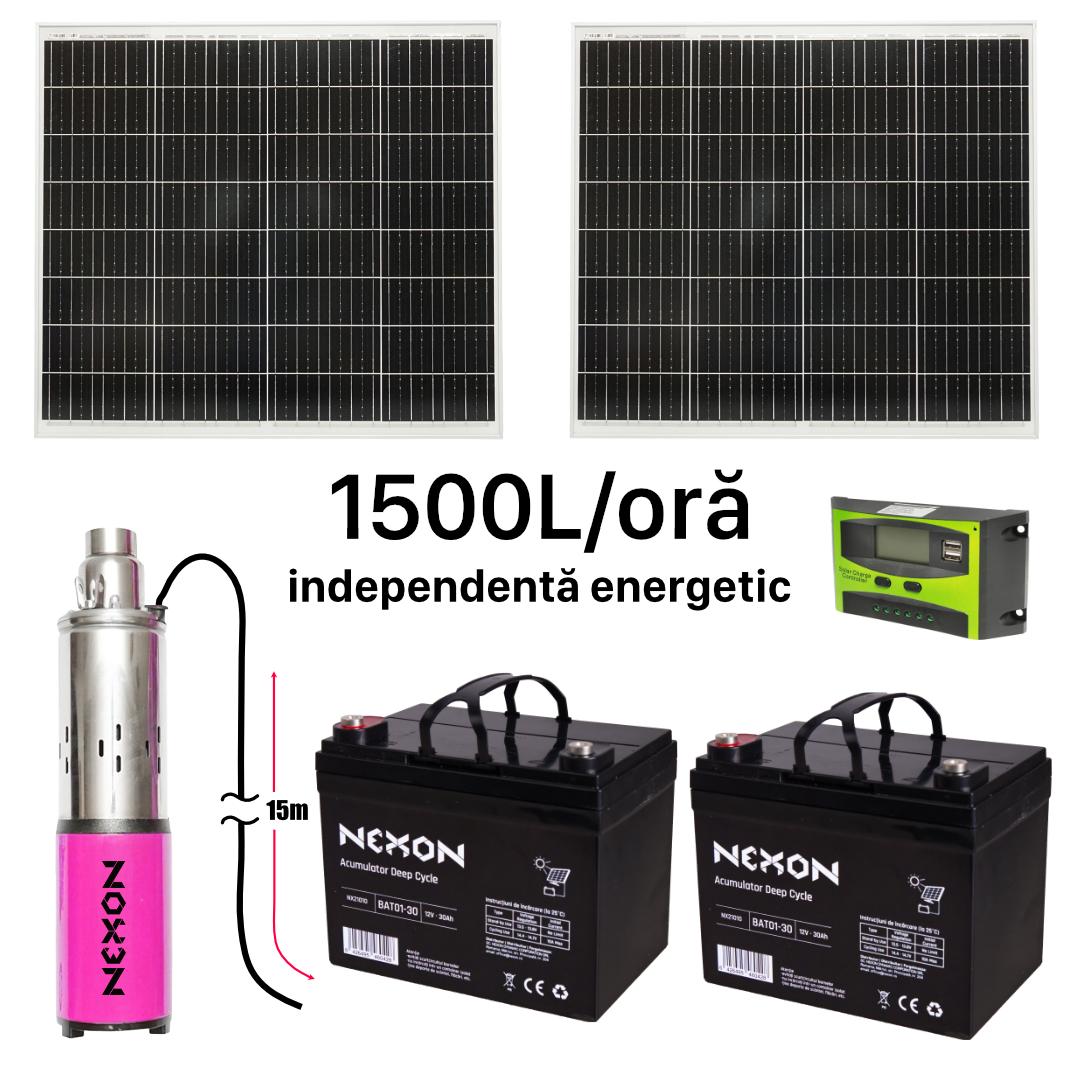

The set includes:
- Solar panel: 2 x 100W
- Regulator-controller: 12 / 24 VDC 20A
- Water pump, submersible: 24 V, 8 A
- Battery: 2 x 30Ah
Attention:
- Support not included.
- Connection cable not included.
Submersible Pump Specifications:
| Nominal voltage: | 24V |
| Max power consumption: | 10A |
| Max power: | 300W |
| Max head height: | 20m |
| Cable length: | 15m |
| Flow rate: | 1.5m³/h |
| Operating temperature: | 1 - +55 °C |
| Continuous use: | max 3h |
| Dimensions: | 80 x 350 mm |
| Weight: | 2.72kg |
Solar Panel Technical Specifications:
| Panel type: | Monocrystalline |
| Panel size: | 760x680x30mm |
| Panel power: | 100W |
| Charging voltage: | 12V |
| Maximum power voltage: | 18V |
| Maximum current: | 8A |
| Open-circuit voltage: | 21.9V |
| Working temperature: | -40°C - +55°C |
| Weight: | 7kg |
Voltage Regulator for Solar Panel 20A 12V/24V
- Reverse polarity protection
- Battery overvoltage protection
- Max input voltage from panel: 50V (12V/24V)
- Water resistant: IP32
- 2 x USB
Voltage Regulator Technical Specifications:
| Battery voltage: | 12/24V - auto adaptation |
| Max charging current: | 20 A |
| Max discharging current: | 20 A |
| Standby current: | > 13 mA |
| USB output voltage: | 5V/2A max. |
| Operating temperature: | -20 - +55 °C |
| Dimensions: | 187 x 90 x 47 mm |
| Weight: | 320 g |
| Ports: | 2x USB |
We make continuous efforts to keep the information on this page accurate. Rarely, it may contain inconsistencies: the photo is for informational purposes and may include accessories not part of the standard package. Some specifications may change without prior notice or may contain input errors. All products listed are subject to stock availability.
